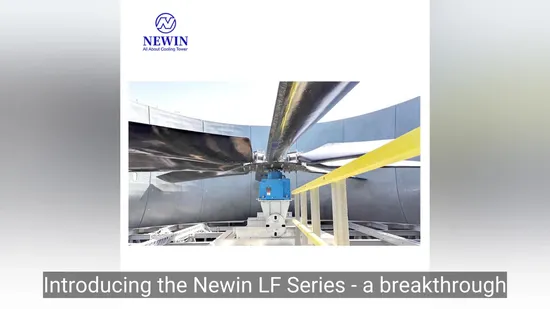

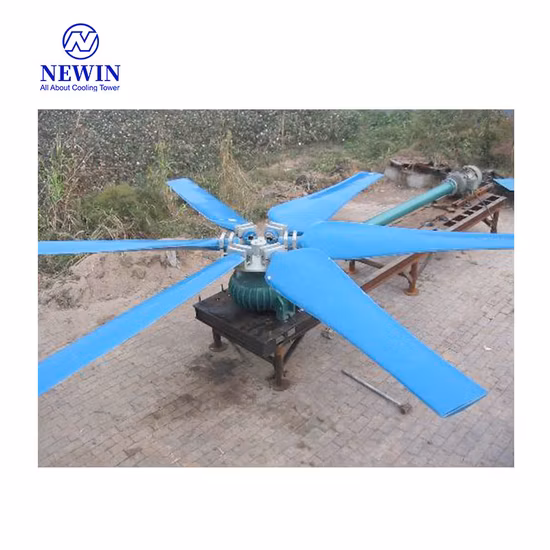

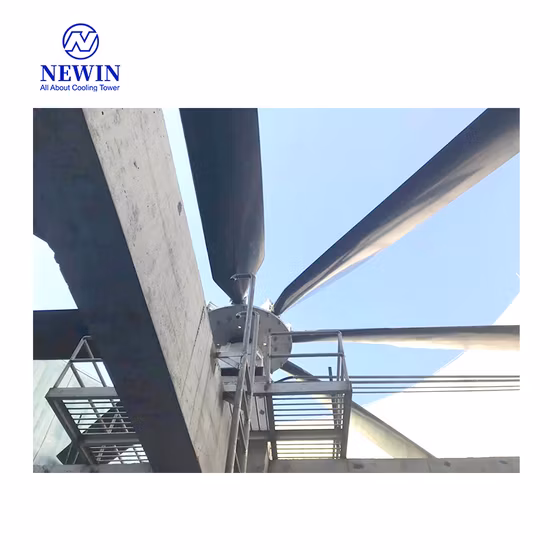

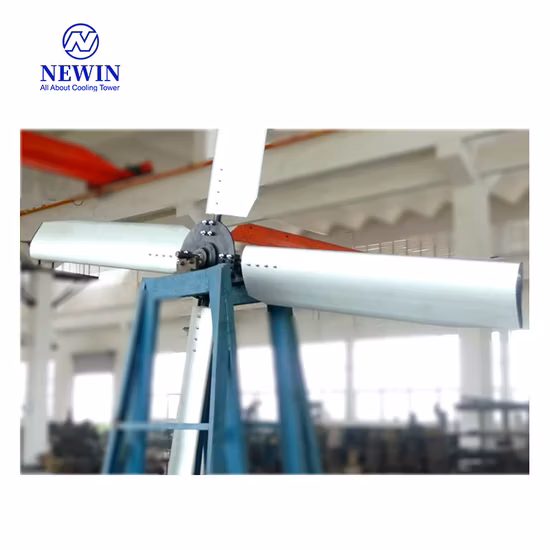

Big FRP Fan for Industry Cooling Tower 7000 mm

Basic Info

Model NO.	LF-70
Cooling Method	Counter Flow or Cross Flow
Ventilation Mode	Natural Ventilation
Material	FRP
Air Contact Form	Dry
Air Contact Way	Open
Tower Shape	Square
Noise Level	Low
Application Fields	Industrial
Certification	ISO, CE
Condition	New
Diameter	7000mm
Air Flow	1400000 Cbm/H
Motor	90 Kw
Transport Package	Wooden Box
Specification	Customized
Trademark	NEWIN
Origin	China
HS Code	8419909000
Production Capacity	500000

Product Description

Overview
Industrial Geareducers are manufactured and designed specifically for cooling towers in large industrial and power plant applications. In shape and function, their design goes beyond normal requirements- Both to maximize air movement through the tower, and to minimize the impact of maintenance.



Gearbox reducer
Reducer for the second gear transmission, spiral bevel gear and helical gear combined transmission system.With compact structure, large transmission power, smooth operation, low noise and other characteristics.The material used by the gear is 20CrMnTi, after heat treatment process, to ensure that the gear has higher wear resistance and impact resistance.The lubrication system adopts the combination of oil immersion and splash flow lubrication. A certain amount of oil is kept in the box. The oil is sent to the oil storage tank by the oil disc to make the oil flow and lubricate the bearing through the flow channel.Skeleton oil seal or mechanical seal is adopted at the entrance of high-speed shaft. The cover of reducer should be removed after 8000 hours of operation to check the wear of the seal and decide whether to replace it.

The lifting ring screw on the lid is for opening the lid of the gearbox when overhauling the gearbox. It cannot be used for lifting the gearbox.The control instrument contact screw hole is arranged on the box body, which can be connected to the control device according to the user's needs.

Fan performance Parameter LF-70

Parameter	Model	LF-70A1	LF-70B1	LF-70A2	LF-70B2
Fan Performance Parameter	Impeller speed (r/min)	149	149	149	149
	Air Volume*104(m3/h)	140	140	140	140
	Full pressure(Pa)	155	155	155	155
	Blade angle	12°	12°	12°	12°
	Blade number	6	6	6	6
	Blade shaft power(KW)	73	73	73	73
	Pressure efficiency (%)	82.6	82.6	82.6	82.6
	Weight (Kg)	2278	2278	2278	2278
Supporting Motor	Model	Y(B)315M1-6	Y280M-4	Y(B)315M1-6	Y280M-4
	Power(KW)	90	90	90	90
	Weight(Kg)	1050	630	1050	630
Install Size	A(mm)	508	457	508	457
	B(mm)	457	419	457	419
	C(mm)	2812	2812	2989	2989
	E(mm)	4190	4134	4190	4134

FRQ:
1. Are you manufacturer ?
Answer: Yes we are a cooling tower manufacturer located in Guangdong Province China. With 18 years of manufacturing and OEM service for several brand of famous cooling tower.
2. Can you provide the cooling tower parts different with the specification in below showing form ?
Answer: We can manufacturer and newly design for special order based on your provided specification and drawing or performance requirements.
3. What products are you manufacturing?
Answer: cooling towers with its accessories (motor, steel frame, plastic components, FRP panel, PVC infill, motor, water pump, motor fan, control box for fan)
4. What is the delivery time?
Answer: For round type cooling tower below 300RT, we have stock in warehouse. other type cooling tower, need to production upon receive the PO. Leading time 15 working days.
5. What is your quality warranty ?
Answer: 1 year for motor, 2 years for steel parts, 5 years for FRP pannel. Free parts available during gurrantee peorid.
6. How many workers working in your factory ?
Answer: 270 workers at the end of 2013.
7. Do you have any production management system or certification for products.
Answer: ISO 9001:2008 quality and environment management system certificates. CTI member certificate for cooling towers.
